Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R
|
|
Removing
(
Refitting
)
Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R |
|
  |
1. Press the retaining tab and disconnect the electrical connector for the fuel level sensor.
|
  |

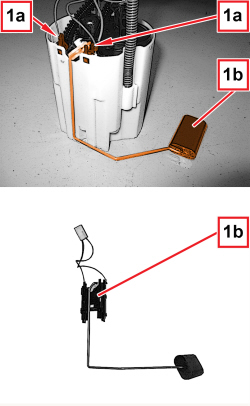

1. Press the clips (1a) inwards and then lift up the fuel level sensor (1b) complete with float and remove it. |
|
|
Refitting
(
Removing
)
- Place the fuel level sensor complete with float in position and secure it to the fuel pump drip tray using the retaining clips. - Connect the electrical connection for the fuel level sensor. - Check that the float moves correctly. |
|
|
Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R |
|
