145 - MiTo   1.4 16v TJet   RADIATOR COOLING FAN - R + R   1088E10

Detail     Detail
Removing ( Refitting )

- Position the vehicle on a lift.

    Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

    Op. 0010T20 ENGINE COOLANT - CHANGE

    Op. 1088B10 ENGINE COOLANT RESERVOIR - R.R.

    Op. 1048B25 INTERMEDIATE RIGID PIPE BETWEEN HEAT EXCHANGER AND THROTTLE BODY - R R

    Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image

1. Remove the waste gate solenoid valve from the fan support and move it to one side.

Enlarge the image

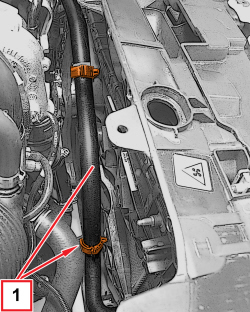

1. Open the retaining clips and move the engine cooling system supply pipe to one side.

Enlarge the image

1. Disconnect the rapid connector and move the radiator coolant inlet pipe aside.

Enlarge the image

1. Disconnect the resistor electrical connection.





Description



Connector


1



Engine fan 1 adjustment resistance



   See O010 ENGINE FAN ADJUSTMENT RESISTANCE - 1

2. Detach the electrical connection for the fan.





Description



Connector


2



Fan motor



   See N011 FAN MOTOR

- Open the retaining clips and release the wiring.

Enlarge the image

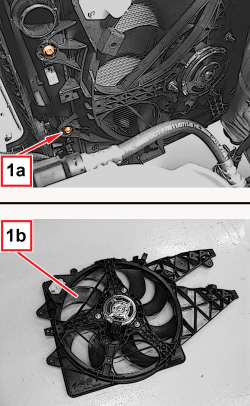

1. Undo the bolts (1a) securing the fan (1b) and remove it from the clips on the right side of the radiator.

Enlarge the image

1. Undo the bolt and remove the resistor.

Enlarge the image

1. Undo the nuts and remove the fan from the support frame.

    Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R.

    Op. 1048B25 INTERMEDIATE RIGID PIPE BETWEEN HEAT EXCHANGER AND THROTTLE BODY - R R

    Op. 1088B10 ENGINE COOLANT RESERVOIR - R.R.

    Op. 0010T20 ENGINE COOLANT - CHANGE

    Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

- Remove the vehicle from the lift.
