145 - MiTo   1.4 16v TJet   LIMITER FOR FLAP FOR GLOVE COMPARTMENT IN DASHBOARD - R.R.   7040A16

Detail     Detail
Removing ( Refitting )

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.


Enlarge the image

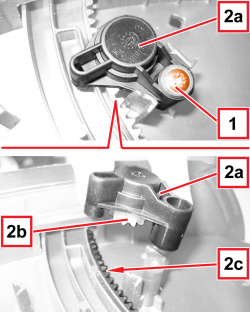

1. Unscrew the bolt.

2. Remove the limiter (2a) releasing the pinion (2b) from the toothed sector (2c).
Refitting ( Removing )

- Ensure the travel limiter is not damaged.

- Position the limiter attaching the pinion to the toothed sector.

- Screw in the bolt.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

APPLIES TO VERSIONS WITH: Right-hand drive

Removing ( Refitting )

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

1. Open the dashboard compartment.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

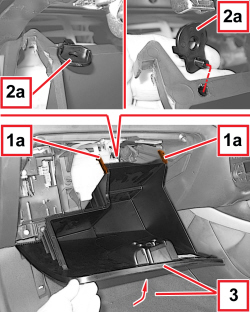

1. Release the end of travel retainers (1a) for the dashboard compartment.

2. Disconnect the compartment travel limiting link end (2a).

3. Reclose the dashboard compartment.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

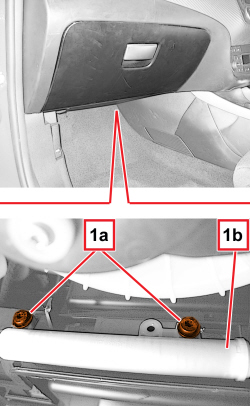

1. From under the dashboard compartment, undo the screws (1a) and remove the compartment travel limiter (1b).

APPLIES TO VERSIONS WITH: Right-hand drive

Refitting ( Removing )

- Check that the travel limiter is not damaged.

- Position the travel limiter and tighten the screws.

- Open the glove compartment.

APPLIES TO VERSIONS WITH: Right-hand drive


Enlarge the image

1. Release the end of travel retainers (1a) for the dashboard compartment.

2. Connect the compartment travel limiting link end (2a) to the dashboard compartment.

3. Reclose the dashboard compartment.

APPLIES TO VERSIONS WITH: Right-hand drive

    Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R
