Refitting

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

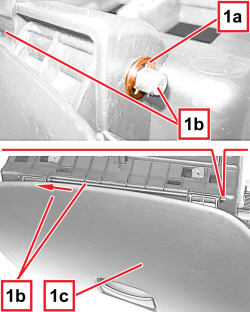

1. Release the retainer (1a) and extract the flap (1c) rotation pin (1b).

1. Open the flap.

2. Release the retainers (2a) for the end of travel rods.

3. Keep the flap.

Removing

- Check that the flap is not damaged.

- Position the flap.

- Attach the retainers for the end of travel rods.

- Close the flap.

- Fit the flap rotation pin and attach the retainer.

   Op. 7040A16 LIMITER FOR FLAP FOR GLOVE COMPARTMENT IN DASHBOARD - R.R.
