145 - MiTo   1.4 16v TJet   SWITCH UNIT ON LEFT SIDE OF DASHBOARD - R.R.   7040A82

Detail     Detail

Enlarge the image


 Removing ( Refitting )

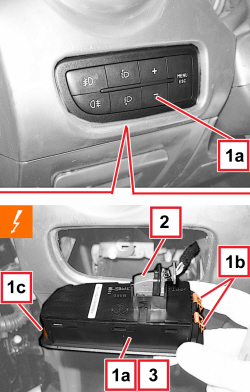

1. Extract the switch unit (1a) releasing the flexible retainers (1b) and the rigid retainer (1c).

2. Detach the electrical connection.





Description



Connector



2



LEFT CONTROL UNIT



   See H091 LEFT CONTROL UNIT

3. Keep the switch unit.
Refitting ( Removing )

- Check that the switch unit is not damaged.

- Connect the electrical connection.

- Place the switch unit in position and attach the retainers.
