Refitting

1. Lower the steering wheel position adjustment lever to the end of its travel.

2. Undo the lower steering column trim bolts.

3. Remove the lower steering wheel cover by releasing it from its seat.

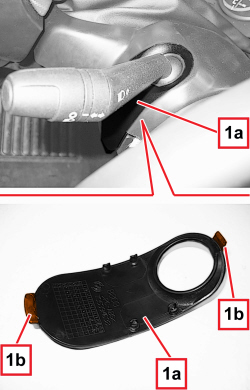

1. Remove panel (1a) from the steering stalk and releasing the retainers (1b).

1. Undo the upper steering column trim bolts.

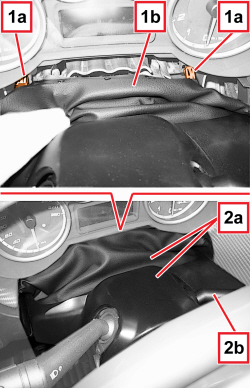

1. Release the perimeter retainers (1a) from the flexible cover (1b).

2. Remove the upper cover (2a) of the steering column by releasing it from the steering stalk (2b).

Removing

- Check that the steering column trim is undamaged.

- Position the upper steering guide column cover and arranged it on the steering stalk.

- Attach the flexible cover retainers.

- Fasten the upper steering column trim bolts.

- Position the trim and attach the retainers.

- Arrange the lower steering wheel cover and engage it in its seat.

- Tighten the lower steering column trim bolts.

- Adjust the steering wheel correctly.
