Removing
(
Refitting
)
 | This procedure is valid only for the 120 HP version. |
|
|
Removing
(
Refitting
)
|
|
|
- Position the vehicle on a lift. |
|
  |

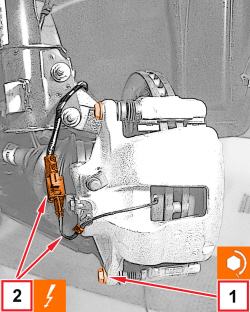

1. Disconnect the electrical connector of the pad wear sensor and release the wiring of the intermediate clip.
2. Undo the screws, remove the brake caliper from the bracket and link it aside. |
  |

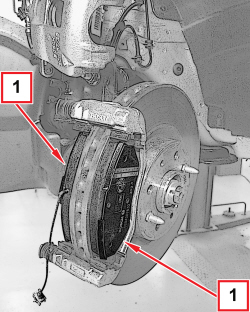

1. Remove the brake pads from the sliding clips. |
  |

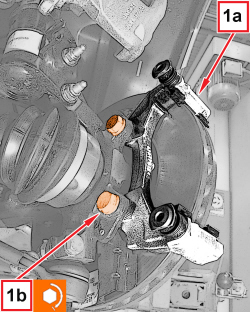

1. Undo the screws (1a) and remove the complete front brake caliper bracket (1b). |
  |
Refitting
(
Removing
)
1. Position the front brake caliper bracket (1a) in its housing and tighten the screws (1b) to the prescribed torque.
|
|
|
- Place the brake pads in their housing, with reference to the instructions in |
|
  |
1. Place the brake caliper in its seat and tighten the new screws to the prescribed torque following the tightening order (tighten to a pre-torque of 1.5 daNm and then tighten to torque starting with the top screw).
2. Connect the electrical connector of the pad wear sensor and engage the wiring of the intermediate clip.
|
|
|
|
- Remove the vehicle from the lift. |
|
|
|
