Refitting

- Remove the wiper arms.

   Op. 5050B34 WINDSCREEN WIPER ASSEMBLY - R+R OR REPAIR

1. Release the windscreen washer liquid pipe (1a) from the retainer (1b).

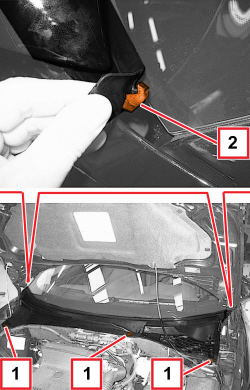

1. Undo the bolts securing the trim.

2. Undo the end retainers.

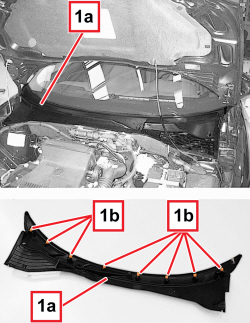

1. Remove the trim (1a) releasing the inner retainers (1b).

Removing

- Check that the trim is not damaged and that the inner retainers are intact.

- Place the trim in position and attach the inner retainers.

- Engage the end retainers.

- Tighten the trim fixing bolts.

- Attach the windscreen washer liquid pipe to the retainer.
