145 - MiTo   1.4 16v TJet   DISPLAY FOR UNFASTENED SEAT BELT - R. R.   7065A33

Detail     Detail

Enlarge the image


 Removing ( Refitting )

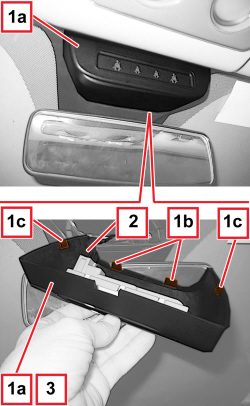

1. Prise up the display assembly (1a), releasing the inner retainers (1b) and (1c).

2. Detach the electrical connection.

3. Keep the display unit.

Enlarge the image

1. Remove the (1a) from the mounting (1b), releasing the retainers (1c) from their housings.
Refitting ( Removing )

- Check that the display is not damaged.

- Position the display on the support and attach the retainers in the seats.

- Attach the electrical connection.

- Position the display unit and engage the inner retainers.

- Check that the display is working properly.

APPLIES TO VERSIONS WITH: M.Y. 2013


Enlarge the image


 Removing ( Refitting )

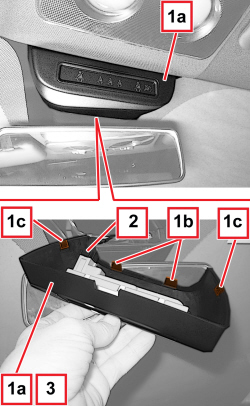

1. Prise up the display assembly (1a), releasing the inner retainers (1b) and (1c).

2. Disconnect the electrical connection.

3. Keep the display unit.

APPLIES TO VERSIONS WITH: M.Y. 2013


Enlarge the image

1. Remove the (1a) from the mounting (1b), releasing the retainers (1c) from their housings.

APPLIES TO VERSIONS WITH: M.Y. 2013

Refitting ( Removing )

- Check that the display is not damaged.

- Position the display on the support and attach the retainers in the seats.

- Connect the electrical connection.

- Position the display unit and engage the inner retainers.

- Check that the display is working properly.
