Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
- Work on both sides. Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
|
|
|
|
- Remove all the handles. Op. 7065C28 GRAB HANDLE ON ROOF LINING (ONE), LH OR RH - R.R. |
|
|
Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R |
|
  |

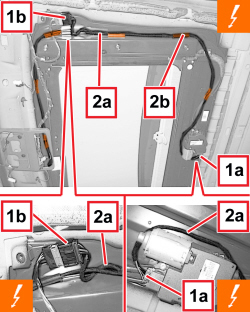

1. Detach the electrical connections (1a, 1b).
2. Remove the sliding roof wiring harness (2a) releasing the retainers (2b). |
|
|
Refitting
(
Removing
)
- Check that the cable loom is not damaged and that the individual conductors are correctly fastened to the connections. If necessary, carry out continuity tests. - Position the wiring harness and engage the retainers. - Connect the electrical connections. Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R |
|
|
Op. 7065C28 GRAB HANDLE ON ROOF LINING (ONE), LH OR RH - R.R. |
|
|
|
|
|
Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
|
|
