Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
- Work on both sides. Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
|
|
|
|
- Remove all the handles. Op. 7065C28 GRAB HANDLE ON ROOF LINING (ONE), LH OR RH - R.R. |
|
|
Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R |
|
1. Detach the electrical connection for the motor.
2. Undo the screws (2a) fixing the motor (2b). |
  |

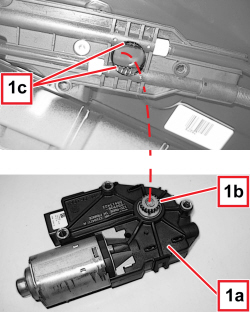

1. Remove the motor (1a) releasing its pinion (1b) from the drive cables (1c), making sure not to move the drive cables, to align the sliding roof guides correctly. |
|
|
Refitting
(
Removing
)
- Check that the motor is not damaged. - Position the motor in its housing and engage its pinion with the drive cables, making sure not to move the drive cables, to align the sliding roof guides correctly. - Tighten the bolts securing the motor. - Attach the electrical connection. Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R |
|
|
Op. 7065C28 GRAB HANDLE ON ROOF LINING (ONE), LH OR RH - R.R. |
|
|
|
|
|
Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
|
|
  |
- After the battery has been disconnected or a fuse has blown or the motor has been removed, the operation of the sliding roof must be initialised again. - Proceed as follows: - press the closing button (A) until the roof is completely closed. - release the button. - press the closing button (A) and keep it pressed for at least 10 seconds and/or until the glass panel clicks forwards. - now, release the button. - press the button (A) within 5 seconds of the previous action and keep it pressed: the glass panel will complete a full opening and closing cycle. - only release the button at the end of this cycle. |
