Removing
(
Refitting
)
- Open the sliding roof blind.
|
|
Removing
(
Refitting
)
- Open the sliding roof blind. |
|
|
|
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
- Work on both sides. Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
|
|
|
|
- Remove all the handles. Op. 7065C28 GRAB HANDLE ON ROOF LINING (ONE), LH OR RH - R.R. |
|
|
Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R |
|
|
  |
1. Undo the screws (1a) fixing the sliding guide (1b). |
  |

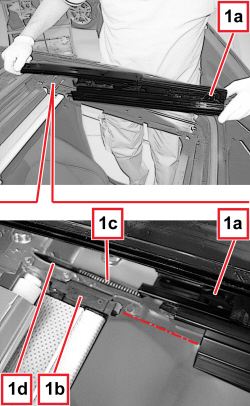

1. Working from the upper side of the roof, extract the guide (1a) releasing it from the blind pad (1b) and removing the drive cable (1c) from the sheath (1d). |
  |
- If necessary, remove the spoiler spring from the sliding guide, working as described below. 1. Unscrew the bolt. 2. Remove the spring (2a) pulling it forwards to release it from the retainer (2b). |
|
|
Refitting
(
Removing
)
- Check that the sliding guide and drive cable are not damaged. - If removed, place the spoiler spring in its housing engaging it with the retainer, then tighten the screw. - If necessary, renew the grease on the moving parts.
- Working from the upper side of the roof, insert the drive cable into the sheath, then place the guide in position engaging it with the blind pad. - Tighten the sliding guide fixing screws. |
|
Op. 7040H16 ROOF PANEL LINING FOR VERSIONS WITH SUN ROOF - R.R |
|
|
Op. 7065C28 GRAB HANDLE ON ROOF LINING (ONE), LH OR RH - R.R. |
|
|
|
|
|
Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R |
|
Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R. |
|
|
|
|
|
- Open the sliding roof blind. |
