 Removing
(
Refitting
)

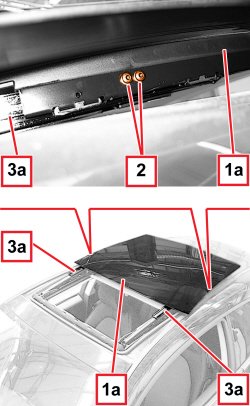

1. Using the opening control, bring the sliding clear section (1a) to the opening end of travel. 2. Undo the side screws fixing the sliding clear section. 3. Carefully remove the sliding clear section (1a) from the guides (3a) pulling it backwards. |
  |

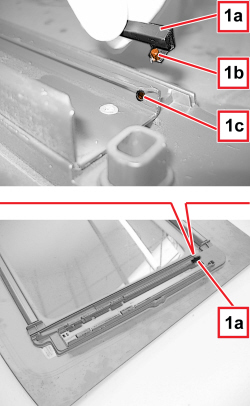

- If necessary, replace the sliding roof guide pads as follows. 1. Remove the rear pads (1a) releasing their retainer (1b) from the housing (1c) then remove them from the guide. |
  |

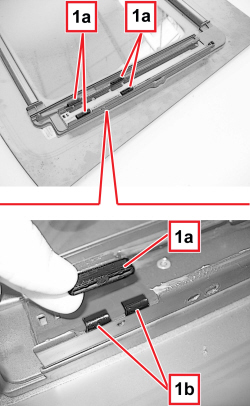

1. Remove the front pads (1a) releasing them from their housings (1b) |
|
|
Refitting
(
Removing
)
- Check that the sliding clear section and the guide pads are not damaged. - If necessary, place the front and rear pads in position and engage them in their seats. - If necessary, restore the grease on the pads.
- Fit the sliding clear section in the guides. - Tighten the side screws fixing the sliding clear section. - Check that the sliding transparent panel is working properly. Also check that it is correctly aligned in the closed position. - Carry out the alignment of the sliding clear section, if necessary. |
|
