Refitting

The removal of adhesive strips after a medium-long period could reveal slight colour differences in paint.

The adhesive strips should be removed and fitted at ambient temperature, not below 18°C. In particular, to fit adhesive strips, the vehicle temperature should be stabilized, placing it in a shadow area (for a correct polymerization of the adhesive after sticking).

- The vehicle bodywork must be previously cleaned.

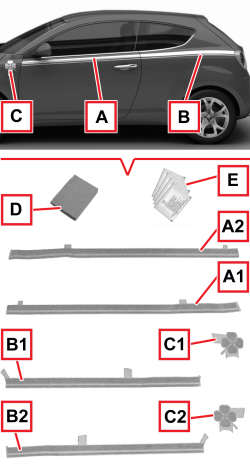

1. The side adhesive strip kit is composed of the following parts:

A: right (A1) and left (A2) adhesive strips for front doors

B: right (B1) and left (B2) adhesive strips for rear wings

C: right (C1) and left (C2) four-leaf clover for front wings

D: buffer for adhesive strip sticking

E: cloths to clean the bodywork area concerned with the adhesion procedure (dipped in suitable 3M product).

2. This procedure describes the removing-refitting of the adhesive strip (B) on the front door.

- For the removing/refitting of the adhesive strip (B), see the relevant procedure.

   Op. 7055C01 ADHESIVE STRIP ON REAR WING (ONE), LH OR RH - R.R.

1. Heat the adhesive strip (1a) and the surrounding bodywork with a hot air blower.

2. Starting from one end, remove the adhesive strip using a plastic brush.

3. Remove the residual adhesive with a suitable product, such as 3M Cleaner Spray.

Removing

1. Clean the bodywork area where the adhesive strip is to be fitted with the cloth included in the kit.

If the cloth is not included in the kit, clean the concerned bodywork area as follows.

- Thoroughly clean and degrease, with denatured ethyl alcohol or isopropyl alcohol, the bodywork area where the adhesive strip is to be applied.

- Wash the area with water then dry it.

- Clean the area using heptane.

The operations of refitting the adhesive strips should be carried out at a temperature of the bodywork/door bonding areas and the adhesive strips between 18 and 40°C (lower temperatures alter the polymerization of the adhesive with consequent deterioration of the adhesion). To increase the adhesion of the adhesive strips, preheat them at a temperature of 30-40°C; apply the adhesive strips immediately after they have been removed from the conditioning environment.

1. Place the front part of the adhesive strip (1a) with the edge (1b) aligned with the edge (1c) of the door.

1. Position the front reference (1a) for the adhesive strip in contact with the glass scraper (1b).

1. Position the rear reference (1a) for the adhesive strip in contact with the glass scraper (1b).

If there is already an adhesive strip on the rear wing, take care to make sure the adhesive strip being fitted is aligned with it.

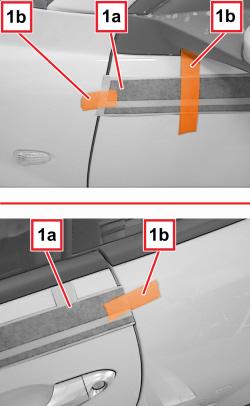

1. Place the adhesive strip (1a) in the correct position keeping it in place with adhesive bodywork tape (1b).

1. Lift up the first part (1a) of the adhesive strip and remove the lower protective film (1b). Start from the front section.

After removing the protective films from the adhesive surfaces, do not touch these surfaces with the fingers or the hands.

1. Stick the part of the adhesive strip (1a) to the door, taking care not to create bubbles or folds (keep the adhesive strip slightly taut).

With the supplied buffer (1b), stick the adhesive strip working gently in the middle.

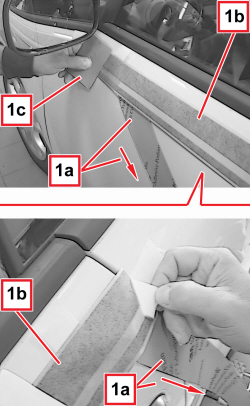

1. Continue to remove progressively the lower protective film (1a) and progressively stick the adhesive strip (1b) with the help of the buffer (1c).

With the help of the buffer (1a) provided, stick the adhesive strip completely, carefully and gently, working from the middle towards the top and then from the middle towards the bottom, as shown by the arrows (in order to dispel the air and prevent bubbles from forming).

Progressively work all the adhesive strip long.

Exert a higher pressure on the adhesive strip perimeter.

1. Progressively remove the upper protective film (1a) for the adhesive strips (1b) working carefully.

The upper protecting film (1a) must be removed by pulling it in its position folded, as shown in the figure, not to cause the removal of the adhesive strips (1b) as well.

1. Turn over and stick the edges (1a) of the adhesive strips to the rear edge of the door.

1. Check the correct adhesion of the adhesive strips (1a) for their whole length; make sure there are no air bubbles and remove them, if required, acting cautiously and gently with the supplied brush.
