Removing
(
Refitting
)
STANDARD VERSION

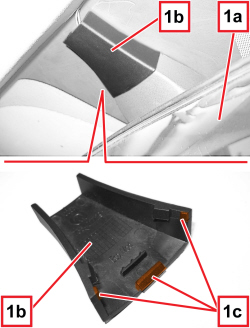

1. Working in the area of the interior rear view mirror (1a), remove the rear trim (1b) releasing the inner retainers (1c).
|
|
Removing
(
Refitting
)
STANDARD VERSION 1. Working in the area of the interior rear view mirror (1a), remove the rear trim (1b) releasing the inner retainers (1c). |
  |

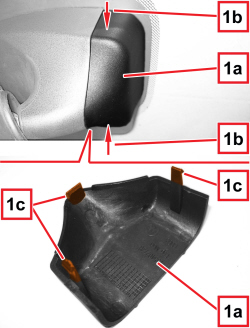

1. Press the front trim (1a) as shown by the arrows (1b), then remove it releasing the inner retainers (1c). |
  |
1. Detach the electrical connection.
|
  |
1. Carefully release the rear view mirror (1a) from the support (1b) lifting it up. 2. Detach the electrical connection. 3. Keep the rear view mirror assembly. |
  |
VERSION WITH SEAT BELT DISPLAY |
|
1. Press the front trim (1a) as shown by the arrows (1b), then remove it releasing the inner retainers (1c). |
  |
1. Detach the electrical connection.
|
  |
1. Carefully release the rear view mirror (1a) from the support (1b) lifting it up. 2. Keep the rear view mirror assembly. |
|
|
Refitting
(
Removing
)
STANDARD VERSION - Check that the rear view mirror assembly is not damaged. - Attach the electrical connection. - Attach the rear view mirror to the support. - Attach the electrical connection. - Fit the front trim and attach the retainers. - Fit the rear trim and attach the retainers. VERSION WITH SEAT BELT DISPLAY - Check that the rear view mirror assembly is not damaged. - Attach the rear view mirror to the support. - Attach the electrical connection. - Fit the front trim and attach the retainers. |
|
