Refitting

- Raise the seat until it is in the end of travel position.

   Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

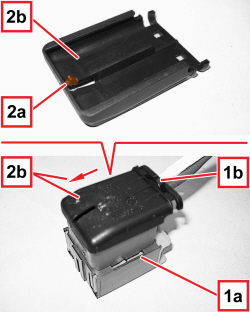

1. Working on the seat electrical connection (1a), cut the wiring retaining band (1b).

2. Use a screwdriver to release the retainer (2a), then withdraw the cover (2b) in the direction of the arrow.

1. Extract the retainer (1a) to the end of its travel.

2. Extract the retainer (2a) to the end of its travel.

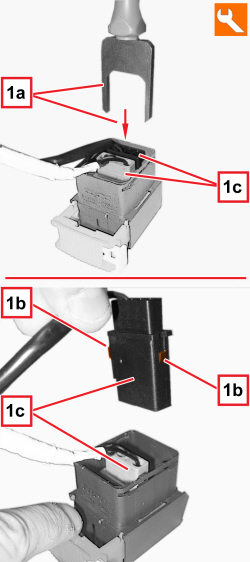

1. Use the special tool (2000018613) (1a) to release the side retainers (1b) then extract the relevant electrical half-connection (1c).

1. Disconnect the retainers (1a) and (1b) for the wiring (1c) for the seat belt mounting rod.

1. Undo the anchorage link retaining bolt

2. Remove the anchorage link (2a), releasing its wiring (2b) from the opening (2c) in the seat frame.

Removing

- Check that the anchorage link with wiring is not damaged.

1. Position the anchorage link (1a) and insert the wiring (1b) in the opening (1c) in the seat frame.

2. Screw in the anchorage link fixing bolt and tighten it to the recommended torque.

- Connect the retainers for the anchorage link wiring.

- Insert the electrical half-connection in its seat and do up the side retainers.

- Insert the retainers to the end of their travel in reverse order to the removal.

- Insert the seat electrical connection cover and do up the retainer.

- Fit the wiring retaining band.

    Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
