Refitting

- Remove the head restraints.

   Op. 7050B12 REAR SEAT HEAD RESTRAINT - R.R.

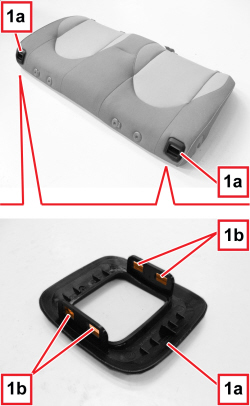

1. Working on both sides of the backrest, remove the trim (1a) for the handle, releasing the inner retainers (1b).

- Fold the backrest over.

1. Working on both sides of the backrest, release the retainers and open the covers.

2. Unscrew the bolts.

3. Remove the fastening device trim.

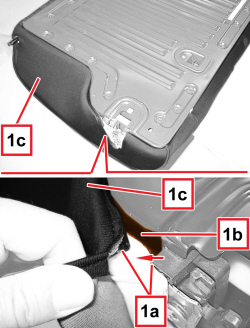

1. Starting at one end, release the perimeter retaining profile (1a) for the backrest cover (1c), from the housing (1b), along the entire perimeter of the actual backrest cover.

- Fold the backrest over.

1. Separate the cover and upholstery (1a) from the backrest frame (1b).

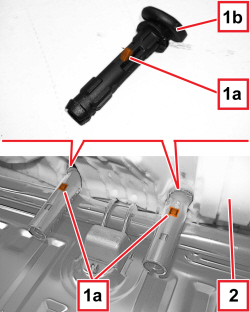

1. Release the retainers (1a) and extract all the head restraint guide bushes (1b) from the backrest structure.

2. Remove the backrest cover with padding.

- If necessary, separate the backrest cover from the padding as described below.

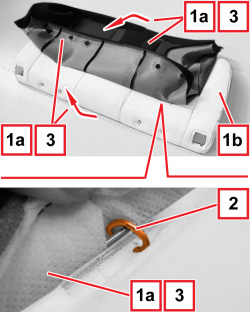

1. Release the cover (1a) releasing it from the perimeter of the upholstery (1b).

2. Use cutters to cut all the backrest cover front retaining rings.

3. Separate the cover (1a) from the padding (1b).

Removing

- Check that the backrest cover is not damaged.

- If removed, position the backrest cover on the padding and attach the retainers using special pliers.

Mould the cover on the padding during the various refitting stages.

- Prise up the backrest cover around the perimeter of the padding.

- Position the cover and padding on the backrest frame.

- Place the head restraint guide bushes in position and do up the retainers.

- Fold the backrest over.

- Attach the perimeter retaining profile for the backrest cover to the backrest frame housing along the entire perimeter.

- Working on both sides of the backrest, position the attachment device trim and tighten the bolts.

- Close the covers and attach the retainers.

- Fold the backrest over.

- Working on both sides of the backrest, position the trim for the handle and attach the inner retainers.

   Op. 7050A42 REAR BACKREST CATCH DEVICE (ONE) - R+R
