Refitting

   Op. 7050D22 COVER FOR INDIVIDUAL REAR SEAT CUSHION, LEFT OR RIGHT - R.R.

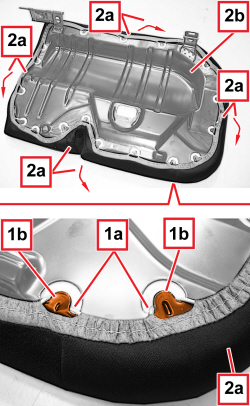

1. Working on the lower side of the cushion, release the perimeter rod (1a) from all the cushion frame retainers (1b).

2. Release the cover (2a) releasing it from the perimeter of the frame (2b).

1. Separate the cover and upholstery (1a) from the cushion frame (1b).

- If necessary, separate the cushion trim from the padding as indicated below.

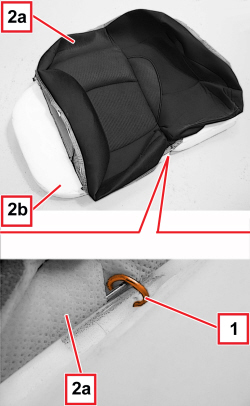

1. Use cutters to cut all the cushion cover upper retaining rings.

2. Separate the cover (2a) from the padding (2b).

Removing

- Check that the cushion cover is not damaged.

- If removed, place the cushion cover on the padding and attach the retaining rings using special pliers.

Mould the cover on the upholstery during the various refitting stages.

- Position the cover and padding on the cushion frame.

- Fit the cover attaching it to the perimeter of the cushion frame.

- Attach the perimeter rod to all the cushion frame retainers.

   Op. 7050D22 COVER FOR INDIVIDUAL REAR SEAT CUSHION, LEFT OR RIGHT - R.R.
