Refitting

   Op. 7050B12 REAR SEAT HEAD RESTRAINT - R.R.

1. Unscrew the bolts.

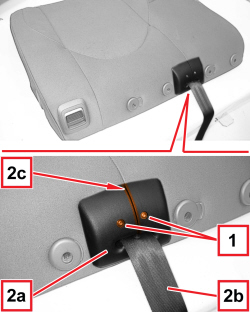

2. Remove the trim (2a) releasing it from the seat belt (2b) via the slit (2c).

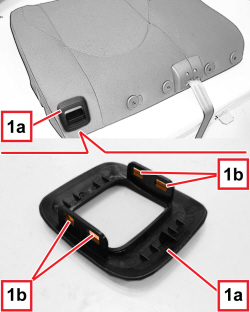

1. Remove the trim for the handle (1a) releasing the inner retainers (1b).

- Fold the backrest over.

1. Working on the attachment device trim, release the covers (1a) and open them.

2. Unscrew the bolts.

3. Remove the fastening device trim.

1. Working on the retainer holder trim, undo the bolt.

2. Remove the retainer holder trim.

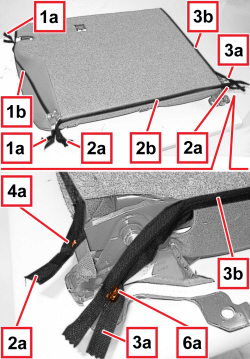

1. Remove the end parts (1a) of the zip fastener (1b).

2. Extract the end parts (2a) of the zip fastener (2b).

3. Extract the end part (3a) of the zip fastener (3b).

4. Using pliers, remove the clips (4a) from the ends (1a) and (2a) of the zip fasteners.

5. Open the zip fastenings (1b) and (2b) along their entire length.

6. Open the zip fastening (3b) along its entire length using the cursor (6a).

1. Release the retaining profile for the end (1a) of the cover from its seat (1b) in the structure.

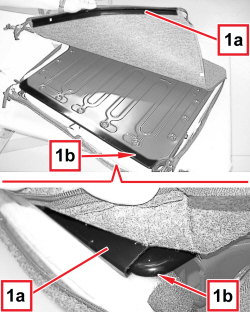

1. Fold the backrest over and lift up the cover and upholstery (1a) from the frame (1b).

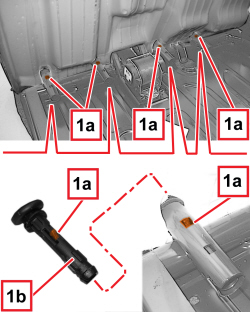

1. Extract the head restraint (1b) guide bush involved from the backrest structure after having release the retainer (1a).

Removing

- Check that the guide bush and retainer are not damaged.

- Place the head restraint guide bush in the structure and attach the retainer.

The head restraint bushes have different retainers and engagement seats.

- Lower the cover and padding on the frame.

- Fold the backrest over.

1. Attach the retaining profile for the end (1a) of the cover to its seat (1b) in the structure.

1. Close the zip fastening (1a) along its entire length using the cursor (1b).

2. Close the zip fastenings (2a) and (2b) using the cursor in repair kit 51704742,

Remove the cursor and fit the retaining clips (2c) at the ends of the zip fasteners.

3. Fit the ends (3a) (3b) (3c) of the zip fasteners inside the cover.

- Position the retainer holder trim and tighten the bolt.

- Position the attachment device trim and tighten the bolts.

- Close the covers and attach the retainers.

- Fold the backrest over.

- Position the trim for the handle and attach the inner retainers.

- Attach the trim to the seat belt through the slot, then place it in position.

- Screw in the bolts.
