Removing
(
Refitting
)
 | This procedure is also valid for the one piece backrest. |
- Remove the backrest carrying out one of the following operations.
|
|
Removing
(
Refitting
)
- Remove the backrest carrying out one of the following operations. |
|
|
|
- Remove the backrest cover carrying out one of the following operations. Op. 7050D35 LEFT REAR SEAT BACKREST COVER (TWO SEATER) - R.R. WITH BACKREST REMOVED |
|
Op. 7050D37 RIGHT REAR SEAT BACKREST COVER (SINGLE) - R.R. WITH BACKREST REMOVED |
|
Op. 7050D31 COVER FOR REAR SEAT BACKREST - R.R. WITH BACKREST REMOVED |
|
  |

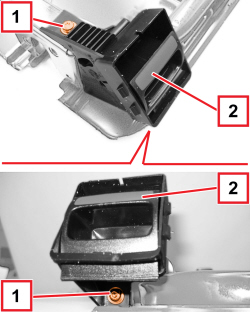

1. Unscrew the bolts. 2. Remove the attachment device (2a) releasing the operating lever (2b) from the handle (2c). |
  |
1. Unscrew the bolts. 2. Remove the handle. |
|
|
Refitting
(
Removing
)
- Check that the attachment device is not damaged. - Position the handle. - Screw in the bolts. - Position the attachment device and fit the operating lever in the housing for the handle. Op. 7050D31 COVER FOR REAR SEAT BACKREST - R.R. WITH BACKREST REMOVED |
|
Op. 7050D37 RIGHT REAR SEAT BACKREST COVER (SINGLE) - R.R. WITH BACKREST REMOVED |
|
Op. 7050D35 LEFT REAR SEAT BACKREST COVER (TWO SEATER) - R.R. WITH BACKREST REMOVED |
|
|
|
|
