Removing
(
Refitting
)
- Remove the backrest carrying out one of the following operations.
|
|
Removing
(
Refitting
)
- Remove the backrest carrying out one of the following operations. |
|
|
|
  |
1. Undo the retaining ring nut using a polygonal spanner. 2. Remove the ring nut. |
  |
1. Remove the washer. |
  |

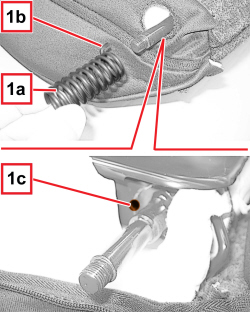

1. Remove the clip (1a) by releasing the retainer (1b) from the seat (1c). |
|
|
Refitting
(
Removing
)
- Check that the ring nuts, the washer and the clip are not damaged. - Place the clip in position and fit it in the housing. - Place the washer in position. - Place the ring nut in position. - Screw in and tighten the retaining ring nut. |
|
|
|
