Refitting

- Raise the seat until it is in the end of travel position.

   Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R.

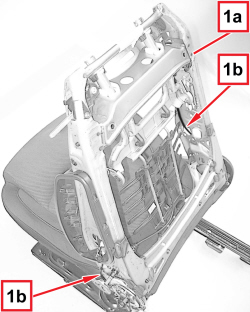

1. Rotate the backrest (1a) slightly forwards until the control cables (1b) for the folding device are no longer taut.

- Work on both sides of the backrest.

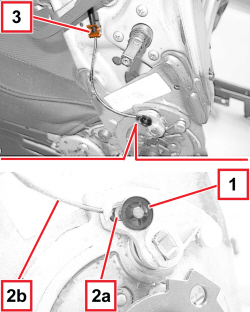

1. Remove the circlips.

2. Disconnect the ends (2a) of the control cables (2b) from the seats.

3. Disconnect the retaining clips for the outer casings from the frame seats.

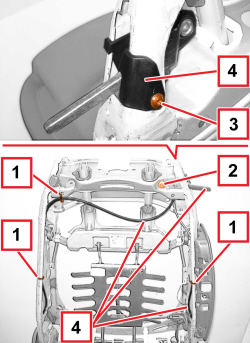

1. Cut the control cable retaining bands.

2. Drill out the rivet.

3. Unscrew the bolt.

4. Remove the control device assembly.

Removing

- Check that the control device assembly is not damaged.

- Place the control device in position.

- Screw in the bolt.

- Fit the rivet.

- Fit the retaining bands on the control cables.

- Connect the retaining clips for the outer casings to the frame seats.

- Connect the ends of the control cables to the seats.

- Fit the circlips.

- Rotate the backrest slightly backwards.

   Op. 7045D30 FRONT SEAT BACKREST COVER, LEFT OR RIGHT - R.R.
