Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
|
|
Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R. |
|
Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R |
|
Op. 7045A43 FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A44 FRONT SEAT INTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A18 FRONT SEAT BACKREST ASSEMBLY (ONE), LEFT OR RIGHT - R.R. |
|
- Remove the guide bushes. Op. 7045B06 GUIDE BUSH FOR FRONT SEAT HEAD RESTRAINT (ONE), LEFT OR RIGHT - R.R. |
|
|
|
Op. 7045A88 FRONT SEAT BACKREST FOLDING DEVICE WITH FLEXIBLE CABLES, LEFT OR RIGHT - R.R. |
|
  |

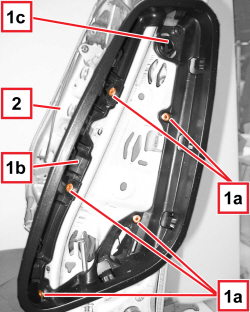

1. If necessary, remove the rivets (1a) using a drill and remove the Air Bag frame (1b) releasing the retainer (1c). 2. Keep the backrest frame assembly. |
|
|
Refitting
(
Removing
)
- Check that the backrest frame is not damaged. - If removed, position the Air Bag frame and attach the retainer, then fit the rivets. Op. 7045A88 FRONT SEAT BACKREST FOLDING DEVICE WITH FLEXIBLE CABLES, LEFT OR RIGHT - R.R. |
|
|
|
Op. 7045B06 GUIDE BUSH FOR FRONT SEAT HEAD RESTRAINT (ONE), LEFT OR RIGHT - R.R. |
|
Op. 7045A18 FRONT SEAT BACKREST ASSEMBLY (ONE), LEFT OR RIGHT - R.R. |
|
Op. 7045A44 FRONT SEAT INTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A43 FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R |
|
Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R. |
|
|
|
|
