145 - MiTo   1.4 16v TJet   FRONT SLIDING SEAT POSITION MECHANICAL MEMORY CONTROL CABLE . (ONE), LEFT OR RIGHT - R.R.   7045A64

Detail     Detail
Removing ( Refitting )

- Raise the seat until it is in the end of travel position.

   Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

   Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

   Op. 7045A44 FRONT SEAT INTERIOR GUARD (ONE), LEFT OR RIGHT - R.R

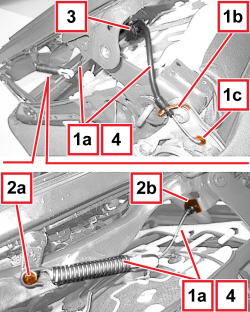

Enlarge the image

1. Disconnect the control cable (1a) from the retainers (1b) and (1c).

2. Disconnect the control cable (1a) from retainers (2a) and (2b).

3. Open the control cable retaining band.

4. Keep the control cable.
Refitting ( Removing )

- Check that the control cable is not damaged.

- Position the control cable.

- Close the control cable retaining band.

- Connect the control cable to the retainers.

   Op. 7045A44 FRONT SEAT INTERIOR GUARD (ONE), LEFT OR RIGHT - R.R

   Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

   Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.
