145 - MiTo   1.4 16v TJet   FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R   7045A43

Detail     Detail

Enlarge the image

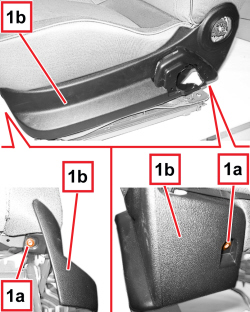

1. Undo the bolts (1a) securing the outer guard (1b).

Enlarge the image

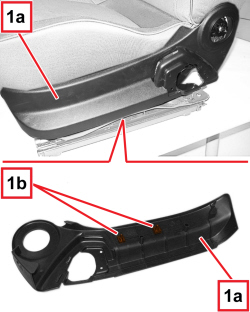

1. Remove the outer guard (1a), releasing the inner retainers (1b).
Refitting ( Removing )

- Check that the outer guard is not damaged.

- Position the outer guard and attach the inner retainers.

- Tighten the outer guard fixing bolts.

   Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R

   Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R.

- Lower the seat into a middle position.
