Removing
(
Refitting
)
- Raise the seat until it is in the end of travel position.
|
|
Removing
(
Refitting
)
- Raise the seat until it is in the end of travel position. |
|
|
Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R. |
|
Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R |
|
Op. 7045A43 FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
  |

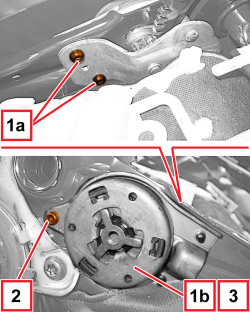

1. Undo the inner bolts (1a) securing the device (1b). 2. Undo the outer bolt securing the device. 3. Remove the height adjustment device releasing it from the splined shaft to which it is connected. |
  |
1. If necessary, remove the toothed pinion (1a) releasing it from the toothed sector (1b). |
  |

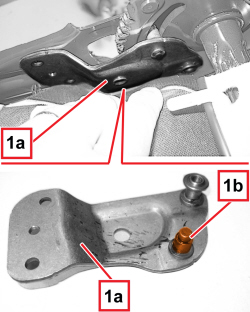

1. If necessary, remove the inner plate (1a) releasing the retainer (1b). |
|
|
Refitting
(
Removing
)
- Check that the height adjustment device is not damaged. - If removed, position the inner plate and attach the retainer. - If removed, position the toothed pinion attaching it to the toothed sector. - Position the height adjustment device attaching it to the splined shaft. - Tighten the bolts securing the device. Op. 7045A43 FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R |
|
Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R. |
|
|
|
