Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
|
|
Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R. |
|
Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R |
|
Op. 7045A43 FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A44 FRONT SEAT INTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
  |
1. Disconnect the electrical connection for the backrest heater pad.

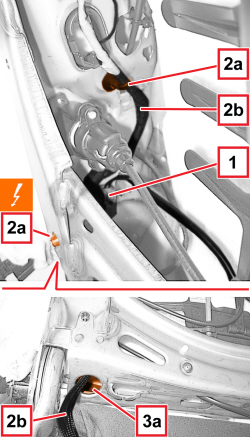

2. Release the retainers (2a) for the Air Bag wiring (2b) from the backrest frame. 3. Extract the Air Bag wiring (2b) from the backrest frame opening (3a). |
  |

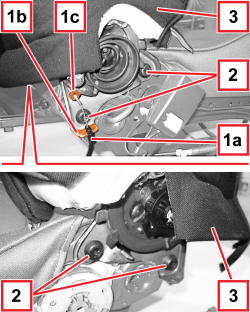

1. Working on the inner side of the seat, disconnect the memory cable (1a) from the backrest frame, releasing it from the retainers (1b) and (1c). 2. Working on both sides of the seat, undo the backrest retaining bolts. 3. Keep the backrest assembly. |
|
|
Refitting
(
Removing
)
- Check that the backrest is not damaged. - Position the backrest. - Tighten the backrest retaining bolts. - Working on the inner side of the seat, connect the memory cable to the backrest frame, attaching it to the retainers. - Insert the Air Bag wiring into the opening in the backrest frame. - Engage the Air Bag wiring retainers in the backrest frame. - Connect the electrical connection for the backrest heater pad. Op. 7045A44 FRONT SEAT INTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A43 FRONT SEAT EXTERIOR GUARD (ONE), LEFT OR RIGHT - R.R |
|
Op. 7045A56 DRIVER'S SEAT HEIGHT ADJUSTMENT DEVICE CONTROL LEVER - R.R |
|
Op. 7045A24 FRONT SEAT BACKREST ANGLE ADJUSTMENT KNOB (ONE), LEFT OR RIGHT - R.R. |
|
|
|
|
