145 - MiTo   1.4 16v TJet   SOUND INSULATION PANEL FOR TUNNEL CONSOLE - R.R.   7095E36

Detail     Detail
Removing ( Refitting )

- Work on both sides.

   Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

   Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

   Op. 7040L22 REAR COVER ON TUNNEL - R.R.

   Op. 2125C02 GEAR CONTROL LEVER OUTER GAITER R R

   Op. 7040L20 TUNNEL COVER - R.R

   Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

   Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

   Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

   Op. 7040A95 REINFORCEMENT BRACKET (ONE), LEFT OR RIGHT BETWEEN DASHBOARD SUPPORTING CROSSMEMBER AND BODYSHELL - R.R.

   Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

- Or, alternatively.

   Op. 7050A22 REAR SEAT CUSHION - R+R

   Op. 7040L10 PASSENGER COMPARTMENT FLOOR COVERING - R.R.


Enlarge the image

Follow all the recommended safety instructions (5580C - Introduction).

    Op. 5580C AIR BAG SYSTEM

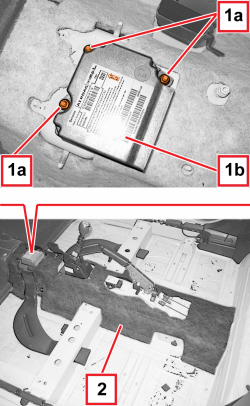

1. Undo the nuts (1a) and remove the Air Bag control unit (1b).

2. Remove the sound insulation panel.

Enlarge the image


 Refitting ( Removing )

- Check that the sound insulation panel is not damaged.

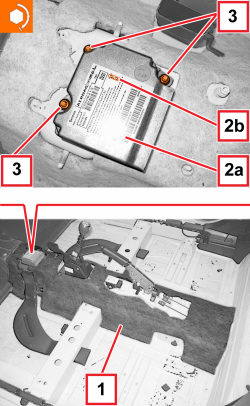

1. Position the sound insulation panel.

Do not knock or strike the control unit. Do not connect the electrical connections to the control unit before having secured the control unit correctly. Make sure that the battery is disconnected.

2. Position the Air Bag control unit (2a). Make sure that the arrow (2b) on the top of the control unit is pointing in the direction of travel.

3. Screw in the fixing nuts and tighten them to the recommended torque.



Component



Fixing



dia



Value (daNm)



Validity



Airbag control unit



Nut



M6



0.6 รท 1.0
