Removing
(
Refitting
)
|
|
Removing
(
Refitting
)
|
|
|
|
  |

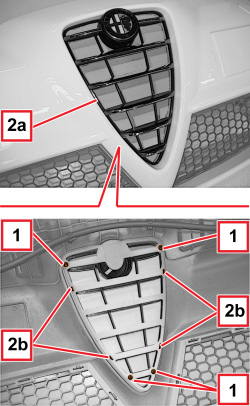

1. Working from inside the bumper, undo the badge fixing bolts. 2. Remove the badge (2a) releasing the retainers (2b). |
|
|
- Remove the badge, if necessary. Op. 7055A84 FRONT BADGE ON BONNET LID OR RADIATOR BADGE - R.R. |
|
|
|
Refitting
(
Removing
)
- Check that the badge is not damaged. Op. 7055A84 FRONT BADGE ON BONNET LID OR RADIATOR BADGE - R.R. |
|
- Place the badge in position and attach the retainers. - Screw in the bolts. |
|
|
|
