Removing
(
Refitting
)
- Remove the right rear cushion.
|
|
Removing
(
Refitting
)
- Remove the right rear cushion. |
|
  |
1. Using the handle (1a) release the right backrest (1b) and turn it downwards. |
  |

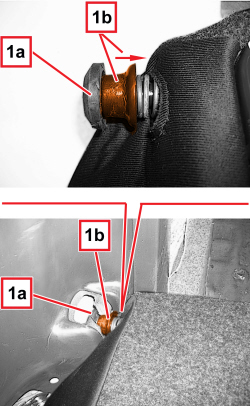

1. Release the side retainer (1a) for the backrest from the housing in the body. To facilitate the removal of the retainer, move the conical bush (1b) towards the inside. |
  |
1. Remove the right backrest (1a) releasing the housing (1b) from the left backrest pin (1c). 2. Keep the right backrest. |
  |
Refitting
(
Removing
)
- Check that the right backrest is not damaged. 1. Position the right backrest (1a) and fit the housing (1b) on the left backrest pin (1c). |
|
|
- Attach the side retainer (1a) for the backrest in the housing in the body. - Lift up the backrest and attach it to the striker. - Check that the backrest is correctly attached to the striker. |
|
