Refitting

- Remove the left rear cushion.

   Op. 7050A22 REAR SEAT CUSHION - R+R

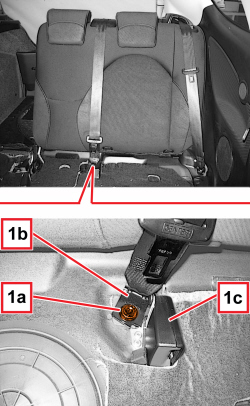

1. Undo the bolt (1a) and move the end (1b) of the middle rear seat belt.

Keep the left seat belt link (1c).

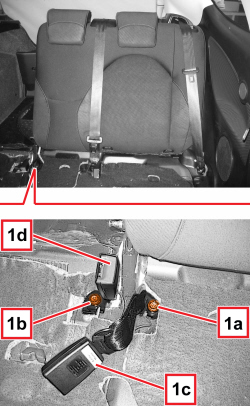

1. Undo the bolts (1a) and (1b) and move the centre link (1c) and the right side link (1d) for the rear seat belts.

1. Working in the middle area of the rear of the backrest, undo the rear bracket fixing bolts.

1. Using the handle (1a) release the backrest (1b) and turn it downwards.

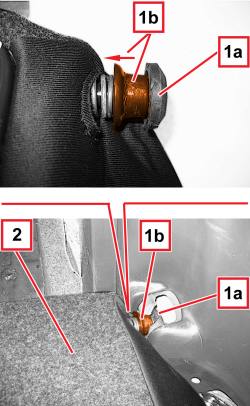

1. Release the side retainer (1a) for the backrest from the housing in the body. To facilitate the removal of the retainer, move the conical bush (1b) towards the inside.

2. Remove the backrest.

Removing

- Check that the backrest is not damaged.

- Position the backrest and attach the side retainer in the housing.

- Lift up the backrest and attach it to the retainer.

1. Tighten the rear bracket fixing bolts.

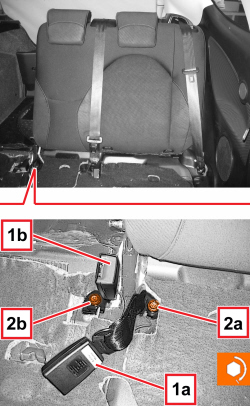

1. Place the rear seat belt mounting rods (1a) and (1b) in position.

2. Screw in the bolts (2a) and (2b) and tighten them to the recommended torque.

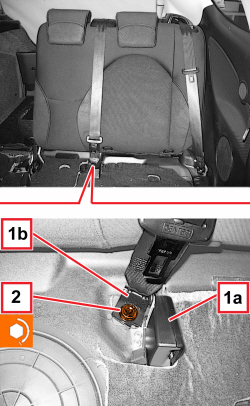

1. Place the left seat belt rod (1a) and the middle rear seat belt end (1b) in position.

2. Screw in the bolt and tighten to the recommended torque.

- Check that the backrest is correctly attached to the striker.

    Op. 7050A15 SPLIT REAR SEAT RIGHT BACKREST - R.R.
