Refitting

- Position the vehicle on a lift.

- Raise the vehicle.

- Remove the number plate lights.

   Op. 5540A94 (ONE) NUMBER PLATE LIGHT - R.R.

1. Working behind the rear left wheel, disconnect the electrical connection for the rear fog lamp.

1. Working under the right left wheel, disconnect the electrical connection for the reversing light.

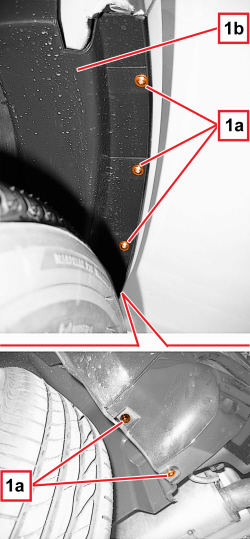

1. Working on both sides of the vehicle, undo the bolts (1a) fixing the bumper to the wheel arch liners (1b).

1. Working on both sides of the vehicle, undo the bolts (1a) fixing the bumper (1b) to the body.

1. Undo the lower bolts (1a) securing the bumper (1b).

- Lower the vehicle.

1. Undo the upper bolts (1a) securing the bumper.

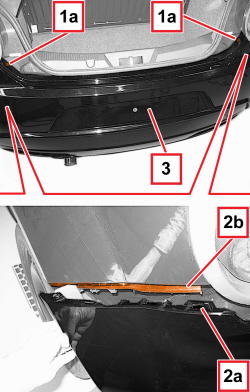

2. Release the side retainers (2a) for the bumper from the seats (2b).

3. Move the rear bumper.

1. Disconnect the electrical connection for the parking sensors.

2. Keep the rear bumper.

Removing

- Check that the bumper is not damaged.

- Connect the electrical connection for the parking sensors.

- Position the bumper and fit in its seat, doing up the side retainers.

- Tighten the upper bolts securing the bumper.

- Raise the vehicle.

- Tighten the lower bolts fixing the bumper.

- Working on both sides of the vehicle, tighten the bolts fixing the bumper to the body.

- Working on both sides of the vehicle, tighten the bolts fixing the bumper to the wheel arch liners.

Working behind the rear wheels, connect the electrical connection for the reversing light and the electrical connection for the rear fog lamp.

   Op. 5540A94 (ONE) NUMBER PLATE LIGHT - R.R.
