Removing
(
Refitting
)

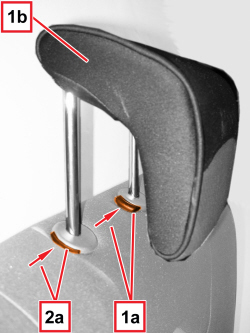

1. Press retainer (1a) and lift up head restraint (1b) until it is in the end of travel position.
2. Press retainers (1a) and (2a) simultaneously and extract head restraint (1b).
|
|
Removing
(
Refitting
)
1. Press retainer (1a) and lift up head restraint (1b) until it is in the end of travel position. 2. Press retainers (1a) and (2a) simultaneously and extract head restraint (1b). |
|
|
|
|
|
Refitting
(
Removing
)
- Check that the head restraint is not damaged. - Press the retainers and fit the head restraint. - Check that the head restraint is working. |
