Refitting

   Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

- Slightly turn the backrest forwards to facilitate removal of the front seat from the vehicle.

- Move the seat to the front end of its travel and lift it completely.

1. Loosen the rear retaining bolts.

- Place the front seat in the rear end of travel position.

1. Undo the retainers.

2. Remove the protection.

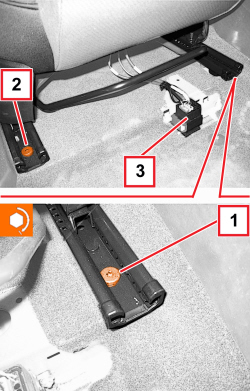

1. Detach the electrical connection.

2. Loosen the front bolts.

3. Remove the seat.

If the seat has a Side Bag, move it handling the seat only and only in the area of the head restraint and at the front of the cushion.

Removing

- Check that the seat is not damaged.

- Place the seat with the guides in the rear end of travel position.

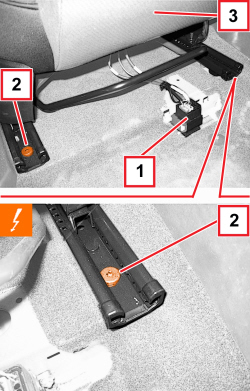

1. Screw in and tighten the inner front fixing bolt.

2. Screw in the outer front bolt without tightening it.

3. Connect the electrical connection.

- Place the protection in the seat and secure it with the retainers.

- Move the seat to the rear end of its travel.

1. Screw in and tighten the inner rear fixing bolt.

2. Lead in the outer rear bolt without tightening it.

The seat should be fastened to the floor without distortions to the sliding guides. If necessary, adjust the floating nuts fastening the external screws to make sure that they are free.

- Check that the seat slides correctly; slide and attach the seat several times and check that the catches click home simultaneously into both guides.

- Screw in and tighten the outer rear bolt.

- Screw in and tighten the outer front bolt.

- Check that the seat slides correctly; slide and attach the seat several times and check that the catches click home simultaneously into both guides.
