145 - MiTo   1.4 16v TJet   FUSE BOX COVER IN INSTRUMENT PANEL - R.R   7040A37

Detail     Detail

Enlarge the image


 Removing ( Refitting )

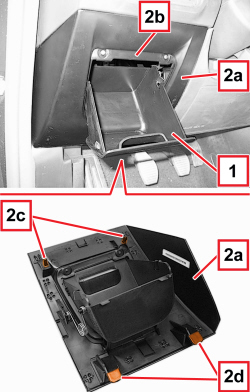

1. Open the compartment.

2. With one hand, grasp the cover (2a) in the zone (2b) and remove it by releasing the inner retainers (2c) and then the retainers (2d).

Enlarge the image


 Refitting ( Removing )

- Check that the cover is not damaged.

- Position the cover and attach the inner retainers.

Ensure that the end of the spring (A) is inserted correctly in the pin (B).

- Close the box.
