145 - MiTo   1.4 16v TJet   ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R   7005R30

Detail     Detail

Enlarge the image


 Removing ( Refitting )

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.

   Op. 7040E24 LOWER COURTESY LIGHT IN DOOR PANEL - R+R

   Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R.

   Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL - R.R.

1. Detach the electrical connection.





Description



Connector



1



DRIVER'S SIDE DOOR MIRROR



   See P060 DRIVER'S DOOR MIRROR



1



PASSENGER SIDE DOOR MIRROR



   See P061 PASSENGER DOOR MIRROR

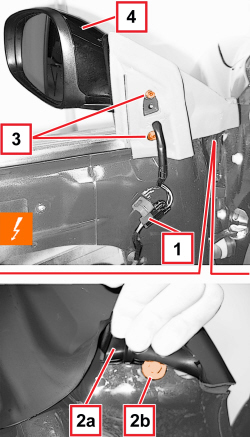

2. Move the door seal edge (2a) and unscrew the front bolt (2b) securing the door mirror.

3. Unscrew the rear bolts securing the door mirror.

4. Remove the door mirror, complete with wiring, from the outside of the door.
Refitting ( Removing )

- Check that the rear view mirror is not damaged.

- Place the rear view mirror and wiring in position.

- Tighten the bolts securing the door mirror.

- Position the door seal.

- Connect the electrical connection.

   Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL - R.R.

   Op. 7005E12 CORNER COVER FOR ONE FRONT SIDE DOOR, LH OR RH - R.R.

   Op. 7040E24 LOWER COURTESY LIGHT IN DOOR PANEL - R+R

   Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.

- Check that the door mirror is working properly.
