Removing
(
Refitting
)
- Position the vehicle on a lift.
|
|
Removing
(
Refitting
)
- Position the vehicle on a lift. |
|
|
|
|
|
|
|
  |

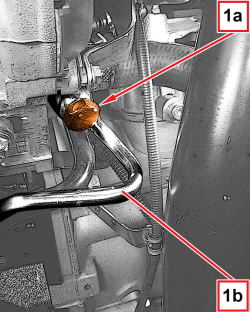

1. Undo the connector (1a) for the coolant supply pipe to the engine oil heat exchanger (1b), thermostat side. |
  |

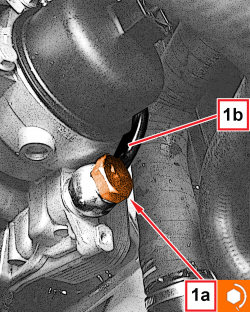

1. Undo the connector (1a) for the coolant supply pipe to the engine oil heat exchanger (1b), heat exchanger side. |
  |

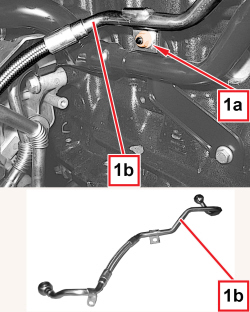

1. Undo the bolt (1a) for the coolant supply pipe to the engine oil heat exchanger (1b), heat exchanger side. |
  |
1. Undo the nut (1a) and remove the engine oil heat exchanger coolant supply pipe (1b). |
|
|
Refitting
(
Removing
)
- Place the coolant supply pipe for the engine oil heat exchanger in position and tighten the fastenings to the engine block and the heat exchanger. |
|
|
|
  |

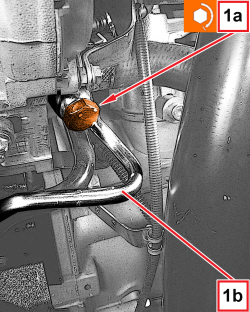

1. Tighten the connector (1a) for the coolant supply pipe to the engine oil heat exchanger (1b), heat exchanger side to the recommended torque.
|
  |

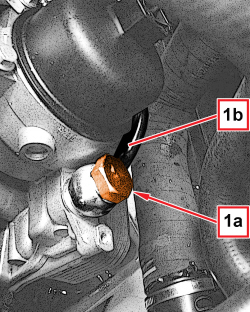

1. Tighten the connector (1a) for the coolant supply pipe to the engine oil heat exchanger (1b), thermostat side to the recommended torque.
|
|
|
|
|
|
|
|
|
|
- Remove the vehicle from the lift. |
|
|
Removing
(
Refitting
)
- Place the vehicle on a lift. |
