145 - MiTo   1.4 16v TJet   GPL INJECTION SYSTEM CONTROL UNIT R R   1057B80

Detail     Detail
Removing ( Refitting )

- Disconnect the negative battery terminal.

Enlarge the image

1. Undo the screws (1a) and move the engine coolant reservoir (1b) to one side.

Enlarge the image

1. Disconnect the electrical connection from the LPG injection system control unit.





Description



Connector


1



LPG control unit



   See M018 LGP UNIT

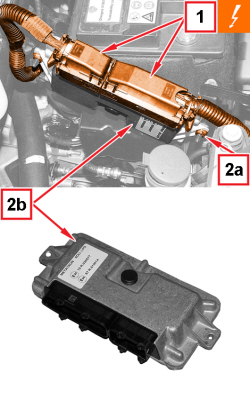

2. Undo the nuts (2a) and remove the LPG injection system control unit (2b).

Enlarge the image


 Refitting ( Removing )

1. Place the LPG injection system control unit (1a) in its housing and tighten the nuts (1b) to the prescribed torque.



Component



Fixing



dia



Value (daNm)



Validity



LPG control unit



Nut



-



0.9 ÷ 1.1



1.4 16V TJet 120 HP

2. Connect the electrical connection to the LPG injection system control unit.





Description



Connector



2



LPG control unit



   See M018 LGP UNIT

- Fit the engine cooling supply reservoir in place and secure it using the screws.

- Connect the negative battery terminal.

APPLIES TO VERSIONS WITH: Euro 5

Removing ( Refitting )

- Disconnect the negative battery terminal.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image

1. Undo the screws (1a) and move the engine coolant reservoir (1b) to one side.

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image

1. Disconnect the electrical connections from the LPG injection system control unit.





Denomination



Connector


1



LPG ECU



   See M018 LGP UNIT

2. Undo the nuts (2a) and remove the LPG injection system control unit (2b).

APPLIES TO VERSIONS WITH: Euro 5


Enlarge the image


 Refitting ( Removing )

1. Place the LPG injection system control unit (1a) in its housing and tighten the nuts (1b) to the prescribed torque.



Component



Fixing



dia



Value (daNm)



Validity



LPG injection control unit



Nut



M6



0.7 ÷ 0.9



1.4 16v TJet EURO 5

2. Connect the electrical connections for the LPG injection system control unit.





Denomination



Connector



2



LPG ECU



   See M018 LGP UNIT

APPLIES TO VERSIONS WITH: Euro 5

- Fit the engine cooling supply reservoir in place and secure it using the screws.

- Connect the negative battery terminal.

APPLIES TO VERSIONS WITH: Euro 6

Removing ( Refitting )

- Disconnect the negative battery terminal.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image

1. Undo the screws (1a) and move the engine coolant reservoir (1b) to one side.

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image

1. Disconnect the electrical connections from the LPG injection system control unit.





Name



Connector


1



LPG control unit



   See M018 LGP UNIT

2. Undo the nuts (2a) and remove the LPG injection system control unit (2b).

APPLIES TO VERSIONS WITH: Euro 6


Enlarge the image


 Refitting ( Removing )

1. Place the LPG injection system control unit (1a) in its housing and tighten the nuts (1b) to the prescribed torque.



Component



Fixing



dia



Value (daNm)



Validity



LPG injection control unit



Nut



M6



0.7 ÷ 0.9



1.4 16V TJet EURO 6

2. Connect the electrical connections for the LPG injection system control unit.





Name



Connector



2



LPG control unit



   See M018 LGP UNIT

APPLIES TO VERSIONS WITH: Euro 6

- Fit the engine coolant reservoir in place and secure it with the relevant screws.

- Connect the negative battery terminal.
