Refitting

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

1. Disconnect the electrical connection for the clutch pedal switch.

2. Retract the (yellow) clip for clutch pedal pin.

3. Turn the fastening lever anticlockwise and partly extract it from its seat.

4. Remove the clutch pedal switch from its mounting releasing the fastening pin.

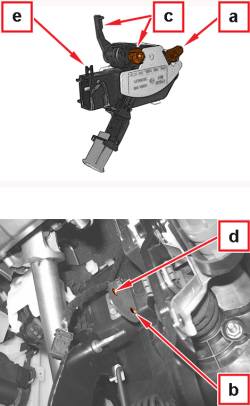

- Place the clutch pedal switch in its housing engaging the fastening tooth (a) in the suitable slot (b) of pedal support.

- Slightly move the clutch pedal switch so that it positions correctly on the laying plane with the fastening lever (c) in the hole (d).

- Rotate by 90° clockwise the fastening lever (c) until coupling it in the suitable housing (e).

The correct coupling of the fastening lever (c) is signalled by a click.

- Adjust the locking clip to attach the clutch pedal pin to the switch rocker lever.

- Connect the electrical connection for the clutch pedal switch.
