Removing
(
Refitting
)
- Remove the number plate lights.
|
|
Removing
(
Refitting
)
- Remove the number plate lights. |
|
|
  |

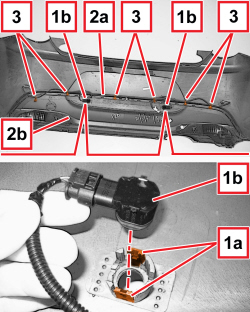

1. Release the retaining tabs (1a) and extract the centre obstacle detection sensors (1b). 2. Undo the centre bolt (2a) securing the moulding (2b). 3. Release the wiring retainers from the bumper seats. |
  |

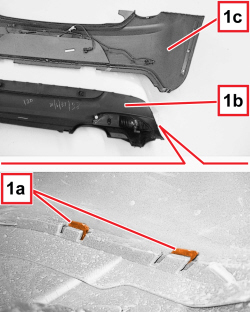

1. Release the retainers (1a) along the entire profile and separate the moulding (1b) from the bumper (1c). |
|
|
- Remove the light clusters, if necessary. |
|
|
|
|
Refitting
(
Removing
)
- Check that the moulding is not damaged. - Connect the moulding to the bumper attaching the retainers along the entire profile. - Attach the wiring retainers to the bumper seats. - Tighten the centre moulding retaining bolt. - Fit the centre obstacle detection sensors in place and attach the retaining tabs. |
|
|
|
|
