Refitting

- Position the vehicle on a lift.

- Open the bonnet.

1. Remove the cover (1a) for the positive battery terminal, releasing the retainers (1b).

1. Unscrew the nuts (1a) and disconnect the wiring (1b) from the positive battery terminal (1c).

2. Loosen the nut (2a) and disconnect the positive battery terminal (1c).

1. Disconnect the cable (1a) for the positive battery terminal from the retainer (1b).

- Raise the vehicle.

    Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

1. Open the protective cover for the starter motor electrical connections.

2. Undo the nut.

3. Disconnect the electrical connection for the wiring (3a) from the starter.

4. Disconnect the cable (3a) from the retainers (4a).

1. Undo the nut (1a) and disconnect the electrical connection (1b) from the alternator (1c).

2. Retain the cable from battery to starter and alternator.

Removing

- Check that the lead is not damaged and that the conductors are correctly fastened to the connections.

If necessary, carry out continuity tests.

1. Position the cable from battery to starter and alternator.

2. Connect the electrical connection (2a) to the alternator (2b) and tighten the nut (2c) to the prescribed torque.

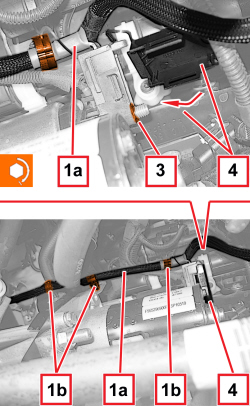

1. Connect the cable (1a) to the retainers (1b).

2. Connect the electrical connection for the starter wiring (1a).

3. Screw in the nut and tighten it to the recommended torque.

4. Close the protective cover for the starter motor electrical connections.

    Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

- Lower the vehicle.

- Connect the positive battery terminal cable to the retainer.

1. Position the positive terminal (1a) on the battery and tighten the nut (1b) to the prescribed torque.

2. Connect the wiring (2a) to the positive battery terminal (1a), then tighten the nuts (2b).

- Position the cover for the positive battery terminal and engage the retainers.

- Close the bonnet.

- Remove the vehicle from the lift.

- Check that the engine ignition and battery charger are working properly.
