Removing
(
Refitting
)
- Position the vehicle on a lift and raise it.
- Remove the number plate lights.
|
|
Removing
(
Refitting
)
- Position the vehicle on a lift and raise it. - Remove the number plate lights. |
|
|
  |

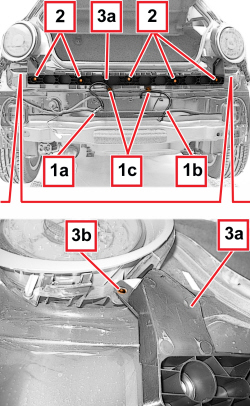

1. Disconnect the wiring (1a) and (1b) from the retainers (1c). 2. Remove the rivets using a drill. 3. Remove the bumper centre support (3a), releasing the side retainers (3b). |
|
|
Refitting
(
Removing
)
- Check that the bumper centre support is not damaged. - Position the bumper centre support and attach the side retainers. - Fit the rivets. - Connect the wiring to the retainers. |
|
|
