145 - MiTo   1.4 16v TJet   TPMS SYSTEM CONTROL UNIT R R   4450B91

Detail     Detail
Removing ( Refitting )

If the TPMS control unit is replaced, the following procedures must be carried out in sequence using the diagnosis equipment:

- Automatic configuration read

- Automatic configuration write.

Enlarge the image

- Open the tailgate.

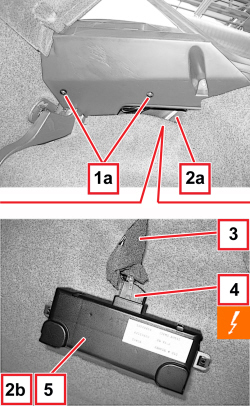

1. Working under the right support for the rear shelf, undo the screws (1a) securing the control unit.

2. Extract the control unit (2b) through the housing (2a).

3. Move the protection for the electrical connection.

4. Detach the electrical connection for the control unit.





Name



Connector


4



TYRE PRESSURE MONITORING CONTROL UNIT



   See M047 TYRE INFLATION PRESSURE CONTROL UNIT

5. Keep the control unit.
Refitting ( Removing )

- Check that the control unit is not damaged.

- Secure the electrical connection for the control unit.

- Fit the protection for the electrical connection.

- Position the control unit.

- Do up the screws.

- Close the tailgate.

APPLIES TO VERSIONS WITH: M.Y. 2013

Removing ( Refitting )

If the TPMS control unit is replaced, the following procedures must be carried out in sequence using the diagnosis equipment:

- Write the rated front and rear tyre pressure values

- Programme ID of rear right tyre sensor

- Programme ID of rear left tyre sensor

- Programme ID of front left tyre sensor

- Programme ID of front right tyre sensor

- Carry out the "TPMS sensor roller bench test" procedure.

APPLIES TO VERSIONS WITH: M.Y. 2013

- Place the car on a lift.

- Disconnect the negative battery terminal.

    Op. 5540A94 (ONE) NUMBER PLATE LIGHT - R.R.

    Op. 7210E66 R.R. REAR BUMPER

APPLIES TO VERSIONS WITH: M.Y. 2013


Enlarge the image

1. Detach the electrical connection for the TPMS control unit.





Name



Connector


1



TYRE PRESSURE MONITORING CONTROL UNIT



   See M047 TYRE INFLATION PRESSURE CONTROL UNIT

2. Undo the nuts and remove the TPMS control unit.

APPLIES TO VERSIONS WITH: M.Y. 2013

Refitting ( Removing )

- Check that the TPMS control unit is not damaged.

- Place the TPMS control unit in position and tighten the nuts.

- Connect the electrical connection for the TPMS control unit.

   Op. 7210E66 R.R. REAR BUMPER

   Op. 5540A94 (ONE) NUMBER PLATE LIGHT - R.R.

- Connect the negative battery terminal.

- Remove the car from the lift.
