Removing
(
Refitting
)
1. Unscrew the brake-clutch fluid reservoir plug and fit the tool.
|
Tool |
Name |
Function |
Validity |
|
2000001400 |
Plug |
Brake/clutch system vacuum |
|
|
Removing
(
Refitting
)
1. Unscrew the brake-clutch fluid reservoir plug and fit the tool.
|
  |

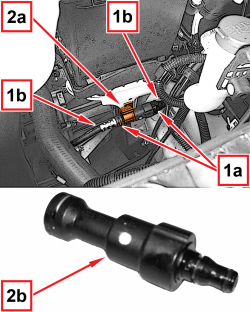

1. Undo the screws (1a) and move the engine coolant reservoir (1b) to one side. |
  |
1. Release the clips (1a) and disconnect the clutch liquid pipes (1b). 2. Open the clip (2a) and remove the additional vibration damper (2b). |
|
|
Refitting
(
Removing
)
- Place the additional damper in position and close the retaining clip. - Connect the clutch fluid pipes to the additional damper and engage the relevant clips. - Fit the engine coolant reservoir in place and tighten the screws fixing it to the front end. |
|
|
|
