Refitting

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

1. Disconnect the electrical connection for the clutch pedal switch.

2. Retract the (yellow) clip locking the clutch pedal pin.

3. Turn the fastening lever anticlockwise and partly extract it from its seat.

4. Remove the clutch pedal switch from the support releasing the fastening pin.

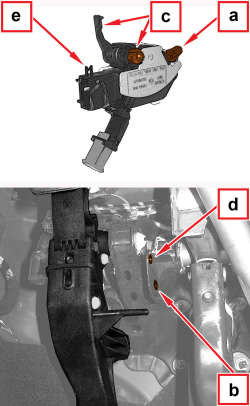

- Place the clutch pedal switch in position attaching the fastening tooth (a) in the special slot (b) in the pedal unit mounting.

- Move the clutch pedal switch slightly so that it is correctly positioned on the support plane with the fastening lever (c) inserted in the opening (d).

- Rotate the fastening lever (c) clockwise through 90° and attach it in the housing (e).

A click can be heard when the fastening lever (c) is correctly attached.

- Adjust the locking clip to attach the clutch pedal pin to the switch rocker lever.

- Connect the electrical connection for the clutch pedal switch.

    Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R
