Refitting

   Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

   Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

   Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

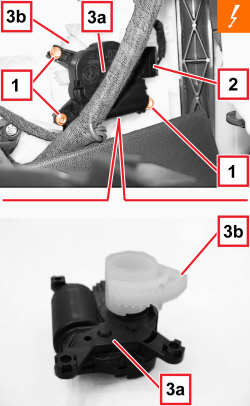

1. Working on the right side of the air conditioning casing, undo the motor fastening screws.

2. Detach the electrical connection.

3. Remove the motor (3a), releasing the toothed transmission coupling (3b).

Removing

- Check that the motor is not damaged.

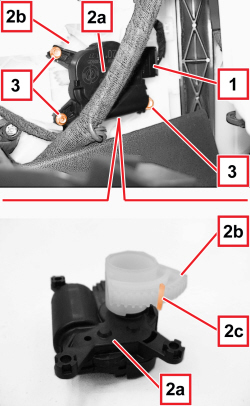

1. Connect the electrical connection.

2. - Position the motor (2a) and engage the toothed transmission coupling (2b), keeping to the proper position (2c).

3. Tighten the bolts fixing the motor.

    Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

    Op. 7040A24 DASHBOARD CLOSURE LOWER TRIM - R.R.

    Op. 7040A31 DASHBOARD COMPARTMENT ASSEMBLY - R.R.

    Op. 7040G20 BULB HOLDER FOR COMPARTMENT LIGHTING IN DASHBOARD - R.R.

Refitting

   Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

- Follow the safety regulations.

   Op. 5580C AIR BAG SYSTEM

   Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

- Remove the right vent.

   Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

1. Working on the right side of the air conditioning casing, undo the motor fastening screws.

2. Detach the electrical connection.

3. Remove the motor (3a), releasing the toothed transmission coupling (3b).

Removing

- Check that the motor is not damaged and, if necessary, conduct an electrical test.

1. Connect the electrical connection.

2. - Position the motor (2a) and engage the toothed transmission coupling (2b), keeping to the proper position (2c).

3. Tighten the bolts fixing the motor.

    Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

    Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

    Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.
