145 - MiTo   1.4 16v TJet   SIDE BAG SENSOR (ONE), LH OR RH - R.R.   5580C40

Detail     Detail
Removing ( Refitting )

Before removing and refitting the sensor the following preliminary operations must be carried out.

- Turn the ignition key to the OFF position and extract it.

- Disconnect the battery.

   Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

   Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

   Op. 7040H80 REAR PARCEL SHELF - R.R.

   Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

- Or, alternatively.

   Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

   Op. 7050A19 REAR SEAT BACKREST - R.R

   Op. 7040H50 REAR PANEL (ONE), LEFT OR RIGHT - R.R.


Enlarge the image

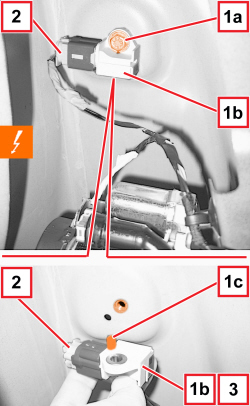

1. Undo the screw (1a) and move the side bag sensor (1b), releasing the striker (1c).

2. Disconnect the electrical connection.





Name



Connector


2



SENSOR FOR DRIVER'S SIDE BAG



   See K066 SIDE BAG SENSOR, DRIVER'S SIDE


2



SENSOR FOR PASSENGER SIDE BAG



   See K067 SIDE BAG SENSOR, PASSENGER SIDE

3. Keep the Side Bag sensor.

Enlarge the image


 Refitting ( Removing )

- Check that the Side Bag sensor is not damaged.

1. Connect the electrical connection.

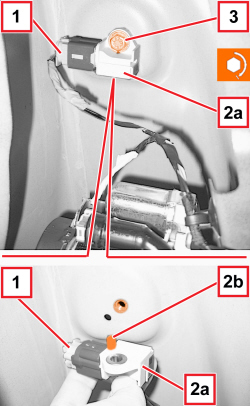

2. Place sensor (2a) in position and engage the striker (2b).

3. Do up the screw and tighten it to the prescribed torque.



Component



Fixing



dia



Value (daNm)



Validity



Side Bag sensor



Screw



M6



0.6 รท 1.0



    Op. 7040H50 REAR PANEL (ONE), LEFT OR RIGHT - R.R.

    Op. 7050A19 REAR SEAT BACKREST - R.R

    Op. 7040H67 RIGHT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

    Op. 7040H66 LEFT REAR SIDE TRIM, WITH REAR PARCEL SHELF SUPPORT - R.R.

    Op. 7040H80 REAR PARCEL SHELF - R.R.

    Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

    Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

- Use Examiner to check that the system has not acquired errors during the operation.
