Refitting

- Position the vehicle on a lift.

1. Undo the screws (1a) securing the front right wheel arch liner (1b).

2. Release the front part (1b) of the arch liner from its seat.

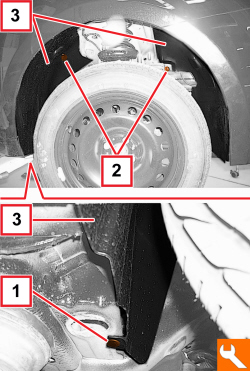

1. Release the retaining stud using the special tool.

2. Tighten the wheel arch retaining nuts.

3. Remove the wheel arch by releasing it from its housing.

Removing

- Check that the wheel arch is not damaged.

- Place the wheel arch in position and fit it.

- Tighten the wheel arch retaining nuts.

- Engage the retaining stud.

- Tighten the wheel arch retaining bolts.

- Remove the vehicle from the lift.
