145 - MiTo   1.4 16v TJet   THIRD BRAKE LIGHT - R+R   5550D16

Detail     Detail

Removing ( Refitting )

   Op. 7015A58 INTERNAL TAILGATE MOULDING (ONE) - R.R.


Enlarge the image

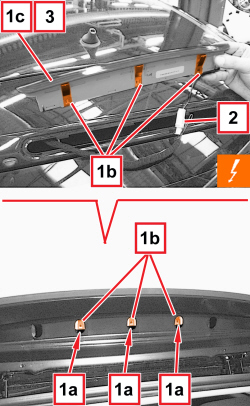

1. Working through the openings (1a) of the tailgate, releasing the retainers (1b) and extract the third stop (1c).

2. Detach the electrical connection.





Description



Connector



2



ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)



   See F040 ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT')

3. Recover the third brake light.

Refitting ( Removing )

- Check that the third brake light is not damaged.

- Connect the electrical connection.

- Position the third brake light in its seat and attach the retainers.

   Op. 7015A58 INTERNAL TAILGATE MOULDING (ONE) - R.R.

- Check the operation of the third brake light.
