Refitting

- Open the bonnet.

1. Release the nut cover at the base of the windscreen wiper arm.

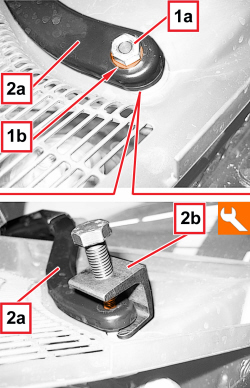

1. Undo the nut (1a) and keep the washer (1b).

2. Remove the windscreen wiper arm (2a).

If necessary, remove the windscreen wiper arm using the special tool (2b).

Removing

- Check that the wiper arm and the blade are not damaged.

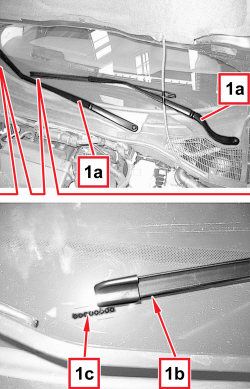

1. Place the windscreen wiper arm (1a) in position aligning the blade (1b) with the references (1c) etched on the windscreen.

1. Fit the washer (1a) and tighten the nut (1b) to the recommended torque.

- Attach the nut cover.

- Close the bonnet.

- Check that the windscreen wipers are working properly.
